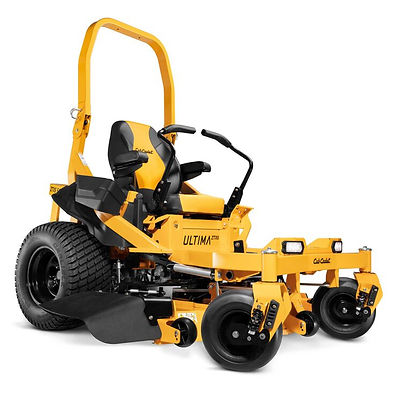

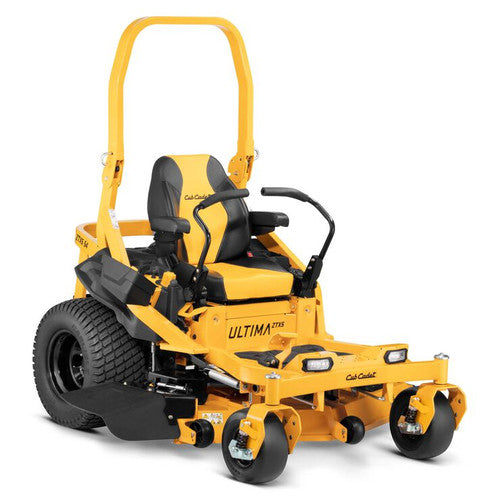

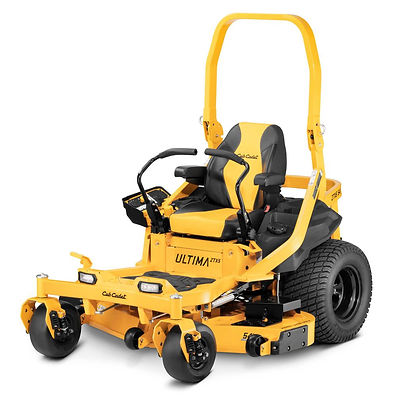

Cub Cadet Pro Z ZTX5 54

Cub Cadet Ultima Series ZTX5 54' Zero-Turn Mower

The Cub Cadet Ultima Series ZTX5 54 is a powerful and precise zero-turn mower designed for medium to large lawns. With commercial-grade performance, durable construction, and advanced cutting technology, it delivers a professional-quality finish with every pass.

Key Features

Excellent Stability on Hills
Synchro-Steer technology provides four-wheel control for straight-line mowing and enhanced stability on slopes up to 20 degrees.

Premium Cutting Performance
The 54-inch AeroForce Max reinforced fabricated deck ensures a clean, even cut with minimal clumping. Smooth arc triple blades and a deep dome deck design allow wide-area mowing for efficiency.

Durable Frame Construction
Built with a 1.5 in. x 3 in. tubular steel frame, the ZTX5 54 combines strength, rigidity, and accessibility for easy maintenance.

High-Performance Kawasaki Engine
Equipped with a 24 HP Kawasaki FS Series V-Twin OHV engine, it delivers reliable starts, smooth operation, and quiet performance for demanding mowing tasks.

Commercial-Grade Transmission
Dual Hydro-Gear ZT-3200 hydrostatic rear-wheel transmissions provide controlled zero-turn operation at speeds up to 8.5 mph forward and 3.5 mph reverse.

Optimized Cutting Design
AeroForce Max deck with low-maintenance spindles and smooth arc triple blades ensures a consistent, professional cut across your lawn.

Turf-Friendly Tires
Turf Master tires minimize damage to grass while providing traction and stability on slopes and uneven surfaces.

Operator Comfort
SoftTouch steering wheel and an adjustable, tilting steering column improve comfort and handling, reducing fatigue during long mowing sessions.

Specifications

• Cutting Width: 54 inches
• Engine: Kawasaki FS Series V-Twin OHV
• Engine Power: 24 HP
• Deck Type: AeroForce Max, fabricated reinforced steel
• Deck Construction: 10-gauge steel
• Number of Blades: 3
• Frame: 1.5 in. x 3 in. tubular steel
• Transmission: Dual Hydro-Gear ZT-3200 hydrostatic rear-wheel drive
• Max Forward Speed: 8.5 mph
• Max Reverse Speed: 3.5 mph
• Steering Technology: Synchro-Steer (4-wheel control)
• Fuel Type: Gasoline
